Introducing MAXISLAT WAFFLE GRID, a dynamic coffered ceiling system that brings geometric precision and visual impact to your interior designs. Crafted to deliver a striking grid-like aesthetic, the MAXISLAT WAFFLE GRID is a waffle grid ceiling that offers a versatile solution for creating a bold, structured waffle ceiling.
Here at Vtec, we’re always developing innovative systems, and these coffered ceiling beams are the perfect way to bring your vision to life. The versatile MAXISLAT WAFFLE GRID not only includes acoustic backing for enhanced sound control, but it also creates a visually striking waffle grid ceiling with eye-catching geometric patterns.
The MAXISLAT WAFFLE GRID ceiling is range-tested for fire performance as fully assembled units, utilising every component.
MAXISLAT WAFFLE GRID is classified as Euroclass B-s2,d0, so you can rest assured that you are meeting compliance requirements and won’t face hidden costs or delays.
Create the perfect acoustic baffle ceiling with the MAXISLAT WAFFLE GRID.
Fire Rating and Compliance
MAXISLAT WAFFLE GRID is engineered for peace of mind. Each fully assembled beam and panel has been independently tested to EN13501-1 as a complete panel. MAXISLAT WAFFLE GRID and is classified as Euroclass B-s2,d0.
What makes MAXISLAT WAFFLE GRID stand out?
Installing MAXISLAT WAFFLE GRID is simple and efficient. The modular system adapts to your space while keeping the build straightforward:
The system is lightweight and precision-manufactured, arriving ready for rapid, accurate installation with minimal disruption.
The benefits of MAXISLAT Waffle Grid
MAXISLAT WAFFLE GRID lets you design ceilings like a blank canvas. Where acoustic performance is required, you can mix acoustic backing colours, explore curved beams, and create bold geometric layouts without compromising fire performance. Panels can be adapted on-site to suit architectural details or service runs while retaining their Euroclass B rating.
Key Advantages
MAXISLAT WAFFLE GRID is more than a ceiling system; it’s a flexible design platform that balances safety, performance, and creativity for every commercial space.
Applications
MAXISLAT WAFFLE GRID turns ceilings into more than just functional surfaces. Its geometric beams create striking visual patterns while improving acoustic performance. Perfect for a variety of interiors:
Service Integration
The modular, lightweight design makes service access straightforward. MAXISLAT WAFFLE GRID accommodates:
It’s ideal for spaces where ongoing maintenance and service integration are key.
Additional Information
MAXISLAT WAFFLE GRID is ideal for creative schemes that demand flexibility. Designers can truly indulge in their creativity and boundless ideas.
The MAXISLAT WAFFLE GRID ceiling creates an immediate architectural statement, with its deep, open-cell ceiling patterns and geometric grid pattern. You can choose the beam size, spacing, shape, and finish of the acoustic baffle ceiling, with 6 standard designs and bespoke options available.
Thanks to the lightweight design and easy installation, the MAXISLAT WAFFLE GRID acoustic baffle ceiling offers full flexibility to suit your vision. Whether you’re looking for star ceiling tiles or grid ceiling tiles, the MAXISLAT WAFFLE GRID is a high-performing system that can support your ceiling needs.
There are various finishes in the MAXISLAT WAFFLE GRID ceiling range, including the high-quality, hard-wearing laminate Supalami collection. We offer a diverse selection to suit your vision accurately.
High-quality hard-wearing laminate finish in 7 options along with fully customised laminates.
Beautiful natural timber veneers with a high quality, clear lacquer.
We can produce any other laminate or species veneer of your choice, as well as bespoke lacquer finishes including metallic.
Using RAL and NCS colour systems, we can create finishes in matt, satin, high gloss or factory-applied base layer in any colour.
Budapest Black
Rotterdam Red
Richmond Red
Ontario Orange
Oakland Orange
Panama Pink
Yorktown Yellow
Yokohama Yellow
Boston Brown
Geneva Green
Gibraltar Green
Grenada Green
Toronto Teal
Tokyo Teal
Bologna Blue
Baltimore Blue
Barcelona Blue
Palermo Purple
Brooklyn Beige
Berlin Beige
Bogota Beige
Glasgow Grey
Genoa Grey
Grenoble Grey
Guadeloupe Grey
Warsaw White
What is MAXISLAT WAFFLE GRID?
MAXISLAT WAFFLE GRID is a fire-rated ceiling beam system used for creative
and acoustic ceiling designs.
MAXISLAT WAFFLE GRID is a Euroclass B geometric beam system made from
lightweight, hollow-core VFR material. The system offers stability, versatility, and a
modern aesthetic for commercial and public spaces.
Create dramatic designs for your unique interior ceilings.
Where can MAXISLAT WAFFLE GRID be used?
MAXISLAT WAFFLE GRID is suitable for indoor commercial, public, and
institutional spaces. Typical applications include:
It can be installed as a suspended ceiling, floating raft, or direct-to-ceiling
system.
Is MAXISLAT WAFFLE GRID fire-rated?
Yes. MAXISLAT WAFFLE GRID has been tested as a complete system and meets
Euroclass B-s2,d0 fire classification.
A formal fire classification report is available upon request. Over 2,900 standard
configurations are covered by the fire classification report.
What sizes are available for MAXISLAT WAFFLE GRID ?
Standard beam sizes are 50×150 mm and 50×200 mm.
Custom sizes are available. Speak to the Vtec Technical Team about bespoke
dimensions.

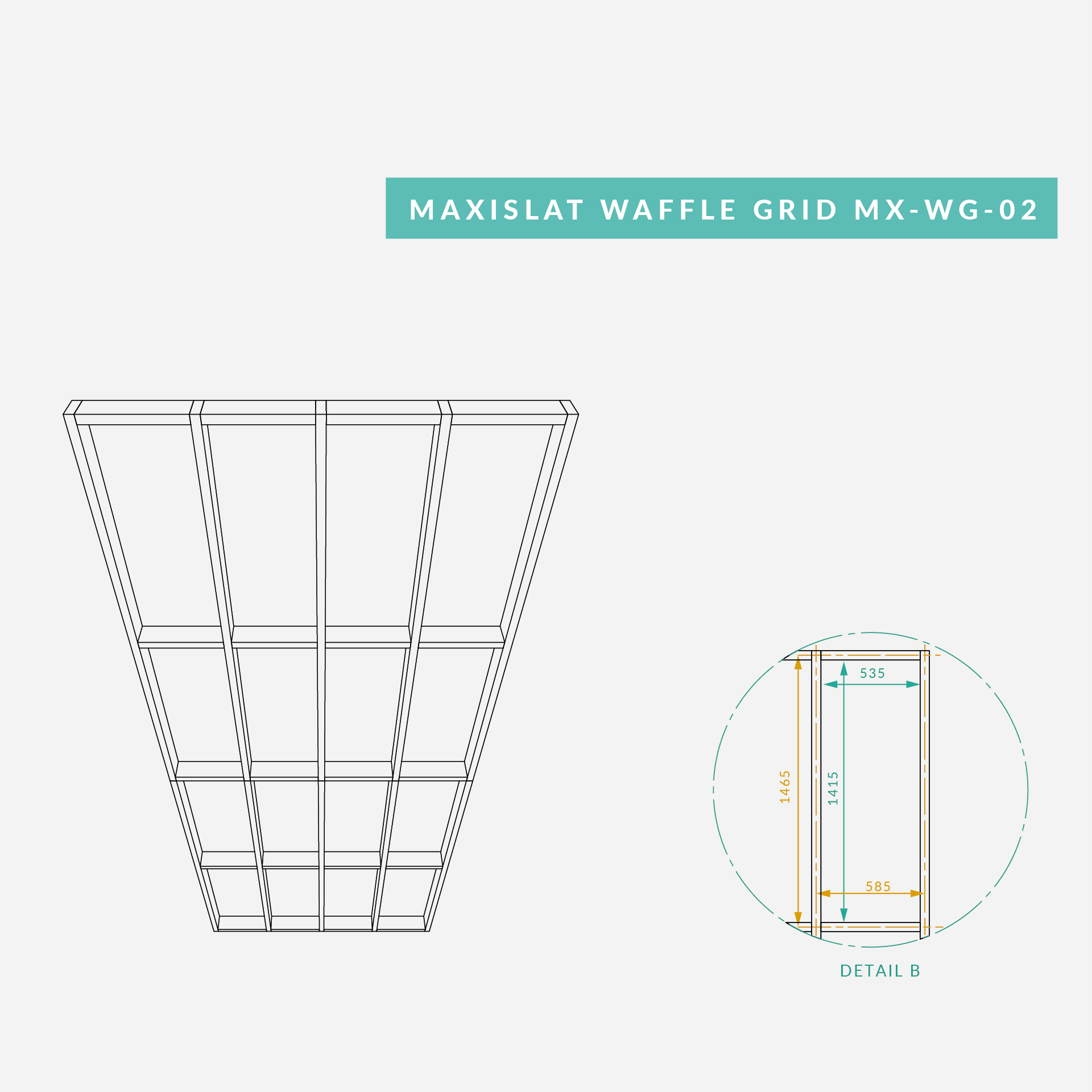

What are the grid options for MAXISLAT WAFFLE GRID?
There are six standard grid options for MAXISLAT WAFFLE GRID.
The MAXISLAT WAFFLE GRID is designed for flexibility. Start with standard
options then tailor beam dimensions, spacings and lengths.
Can I create a custom MAXISLAT WAFFLE GRID layout?
Yes. Bespoke layouts can be created and validated by the Vtec Technical Team
before production.
Options include:
What finishes are available for MAXISLAT WAFFLE GRID ?
MAXISLAT WAFFLE GRID is available in Supalami fire-rated laminates.
These finishes are durable, cost-effective, and included in the Euroclass B rating.
Wood-style finishes are standard, but bespoke finishes can also be specified.
Is MAXISLAT WAFFLE GRID sustainable?
Yes, MAXISLAT WAFFLE GRID meets key sustainability and health standards.
These include:
Does MAXISLAT WAFFLE GRID improve acoustics?
Yes, MAXISLAT WAFFLE GRID can help with sound management when installed
with our EchoTone acoustic backing board.
How is the MAXISLAT WAFFLE GRID installed?
MAXISLAT WAFFLE GRID uses a Fixing Cleat system with main and infill beams
that slot together to form a grid.
It can also be designed to integrate lighting, HVAC, AV systems, and access
panels. CNC jigs are available for precise positioning if required.
Is MAXISLAT WAFFLE GRID easy to maintain?
Yes, MAXISLAT WAFFLE GRID is low maintenance and only requires occasional
dusting.
Avoid moisture or wet cloths. The surface is durable and easy for maintenance.
Does MAXISLAT WAFFLE GRID have any antimicrobial properties?
Yes, standard finishes are tested to ISO 22196:2011.
Then antibacterial surfaces are proven effective against Staphylococcus Aureus
and E. coli.
Antimicrobial coatings are available on request.
What acoustic backing colours are available for MAXISLAT WAFFLE GRID ?
There are over 26 colour options for the EchoTone acoustic backing boards.
Popular shades include:
Additional options include vibrant reds, blues, greens, and neutrals.
